Butterfly Valves

Easy installation, maintenance-free drive

KIESELMANN butterfly valves are the space-saving solution for shutting down product flows in process plants and on panels and containers hygienically and cost-effectively. They are also available as intermediate flange butterfly valves as well as numerous other connection variants, such as welding and threaded ends. All valves are manufactured in the Kieselmann headquarters in Knittlingen.

Our butterfly valves are excellent; and are characterised by:

  • Easy installation, many connection options
  • Service-friendly intermediate flange design
  • tailor-made and long-term spare parts supply
  • as well as the highest quality in dimensional accuracy and surface finish.



The sealing elements used all have proof of suitability for use in the food industry. The ergonomic heat protection handle of our butterfly valves is available as 360° all-round switching, with 90° locking and optionally also with switching limitation. Alternatively, these valves are also available with a stainless-steel handle. 

Kieselmann Butterfly Valves Ireland
Kieselmann Butterfly Valves Ireland

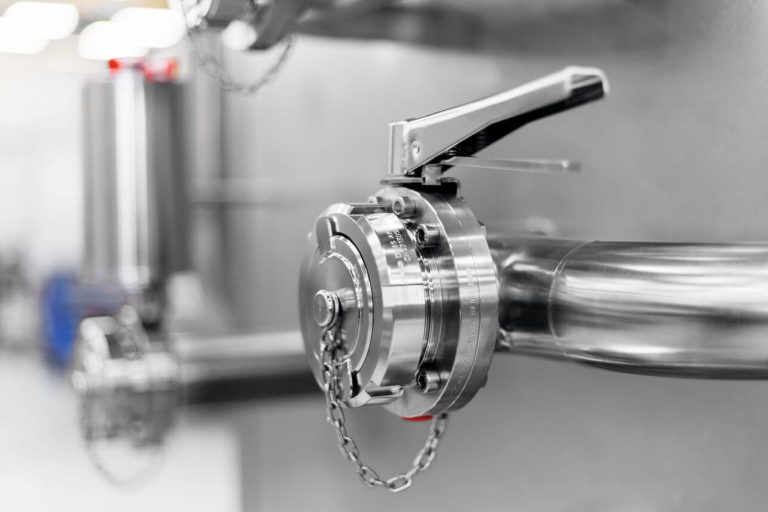

Intermediate flange butterfly valve
with k-flex seal to the flange closures.

Automatically cost effective

You do not have to go without automation with this cost-effective valve solution. On the contrary, for automatic operation, the butterfly valves can be equipped with a pneumatic rotary actuator.

Our modular system makes it possible to change over quickly and easily from manual to pneumatic drive without removing the valves from the piping system. The drives are available with sensors or control head KI-TOP.

KIESELMANN pneumatic rotary actuators are characterised by a particularly high torque. The closed version in stainless steel housing is completely maintenance-free. We give you a 5-year guarantee. The standard position indicator lets you know at any time how the valve is switched.

The practical end position detector ensures permanently reliable feedback without the hassle of readjusting the limit switches.

Advantages

  • Ergonomic thermal protection handle, 90° lock or optional shift limit
  • Standard or shortened handle design, fiberglass (reinforced plastic material)
  • Available in your choice of colours or stainless steel
  • Vacuum insert suitable
  • Easy installation, many connection options
  • Three-way butterfly valves with switching combinations
  • Service-friendly intermediate flange design
  • Tailor-made and long-term spare parts supply
Kieselmann Butterfly Valves Ireland

Easy Install Valve

Kieselmann Butterfly Valves Ireland

Robust Design

Kieselmann Butterfly Valves Ireland

Thermal Protection Handle
