Control Valves
KIESELMANN control valves are based on the modular design system of the single seat valve range. Within a nominal diameter different flow coefficients as well as control characteristics and seal types can be implemented.
KIESELMANN control valves for liquids and gases regulate volume flows and pressures in process plants.
The selection of the appropriate valve type depends on the application. The space-saving and cost-effective butterfly valves with positioners are ideal for simple control tasks. For processes requiring high control accuracy, KI-DS single-seat control valves are the right choice
Maximum Flexibility,

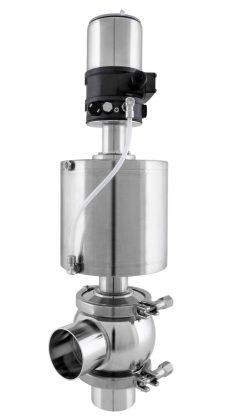

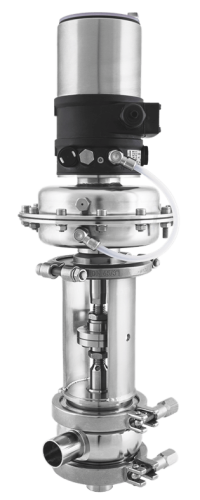

KIESELMANN control valve
Flexible due to replacement seat concept
The essential feature of this valve series is the hygienic changeable seat concept. Linear or equal-percentage control characteristics are available for selection.
Plug and seat can be exchanged in a few simple steps. The seal variant can be easily exchanged from soft to metallic. We offer control valves with flow coefficients from 0.1 m3/h to 160 m3/h in nominal widths DN 20–125. Within the respective nominal width, various flow coefficients are possible without costly conversion measures.
Advantages
- Simple adaptation
- Linear or equal-percentage control
- Flexible cone & replacement seat concept
- 3 actuator versions: manual actuator, reciprocating actuator (5 sizes)
- Membrane actuator (4 sizes)
- Elastomer sealing or metallic sealing
- Modularity
- Cost-effective
- Maintenance-friendly intermediate flange design
