Safety Programme
For smooth processes and protection against overpressure
KIESELMANN safety valves protect your system and the hygienic processing of your products. Reliably safe processes, that’s what the safety valves with CE type examination and EAC certification for gases stand for. They protect automatically without any additional auxiliary energy.
With safety valves from KIESELMANN you can ensure trouble-free operation and avoid damage due to impermissible overpressure. The ideal protection for all connected system parts, vessels, pipelines and your employees.

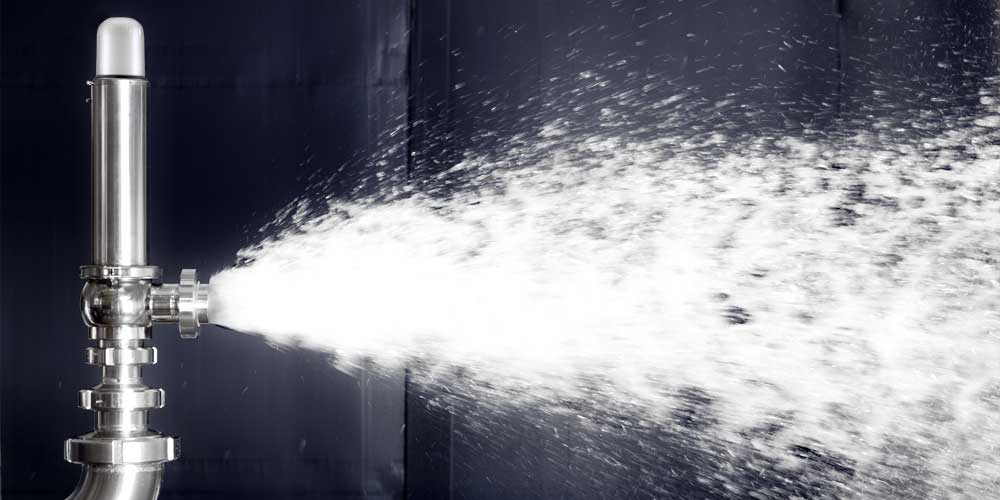

With pressure increase analogue to the opening characteristic, the flow rate is constantly discharged from the valve outlets depending on the max. permissible operating pressure.
Safety valves are optionally available

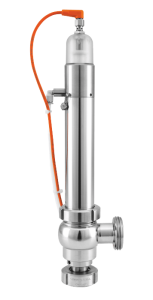

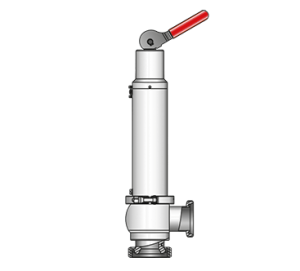

pneumatically or manually liftable
KIESELMANN safety valves open automatically, as soon as the pressure has exceeded a previously defined value. Closing is then effected by spring force. They are used in systems containing liquids and gases. The set pressure is precisely adjusted at the factory to your requirements and sealed to protect against unwanted changes. We will be happy to help you design the right safety valve.

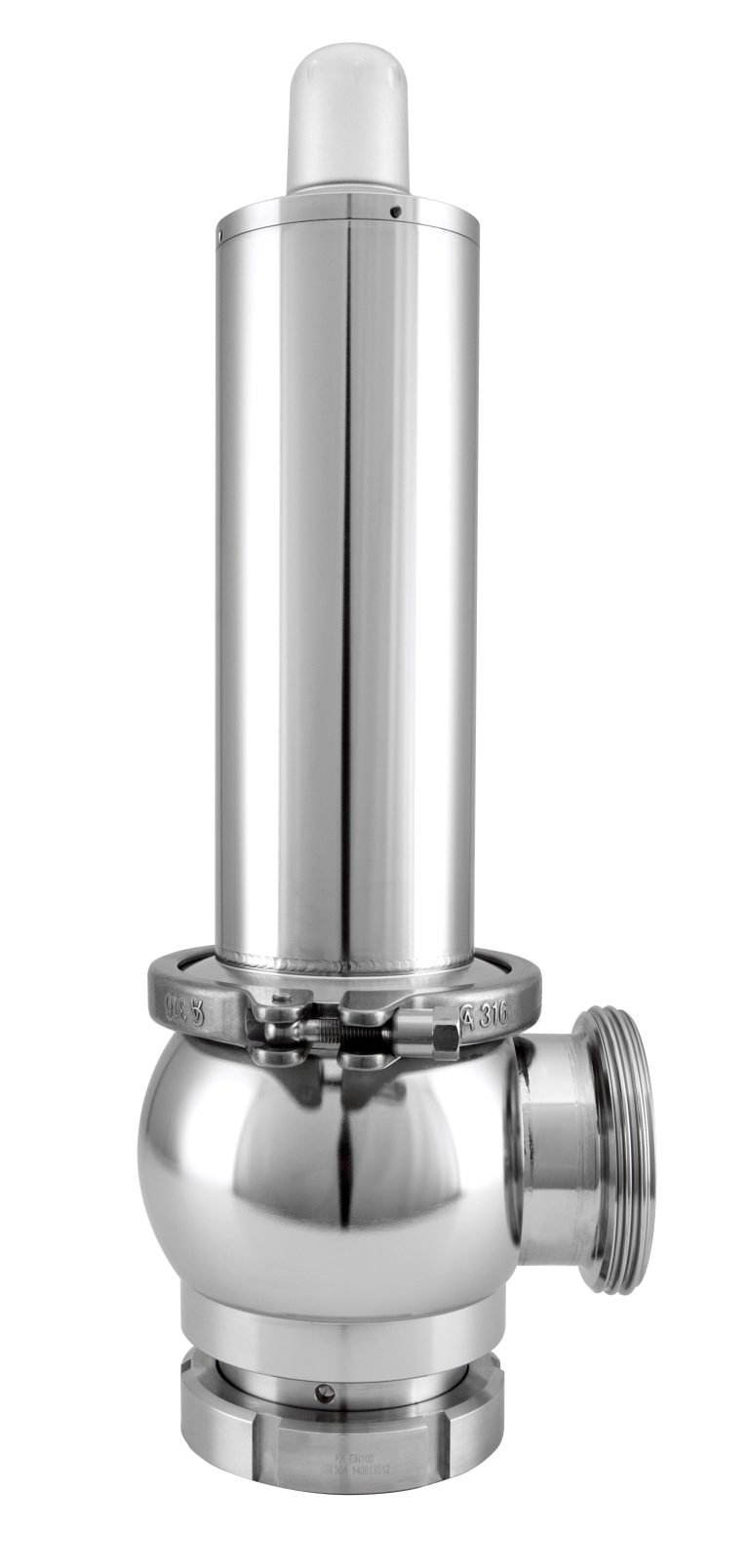

Our safety valves are characterised by a compact and closed housing design. All moving parts are located inside the housing so that no functional parts can be blocked from the outside. This also allows adequate cleaning of the external surfaces.

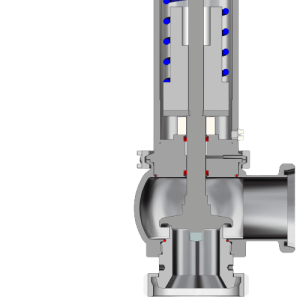

The spherical inner contour ensures excellent CIP (Cleaning-In-Place) and SIP (Sterilisation-In-Place) properties. And we have also thought of this: the valve insert can be removed from the housing for maintenance purposes without changing the pressure setting.
- For liquids and gases
- Low-maintenance construction
- Precise opening and closing Type examination according to PED 2014/68/EU
- Design, manufacture and function conform AD 2000 regulations/ISO 4126-1
- Optimum blow-off performance (high α-value) with low flow resistance
- Hygienic design >CIP/SIP cleanable
