Leakage Valves
Secure and adaptable

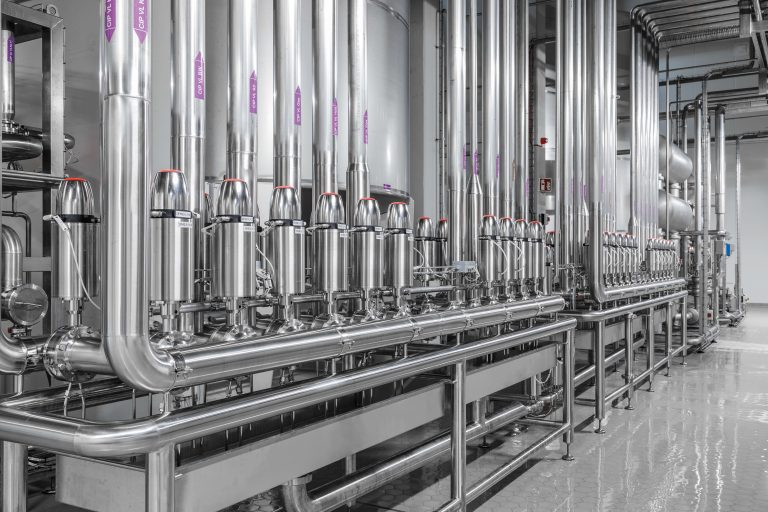

KIESELMANN leakage disc valves are the cost-effective and space-saving solution for reliable product separation in process plants. They are used as reliable shut-off devices on panels and containers. In contamination-critical areas, you can offer extra security. A leak caused by seal wear can be detected and corrected immediately.
KIESELMANN leakage disc valves are generally available in intermediate flange design. This construction and the split housing allow the seals to be easily and quickly replaced.

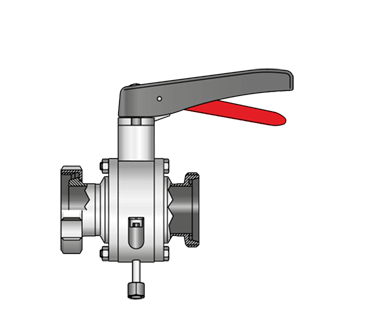

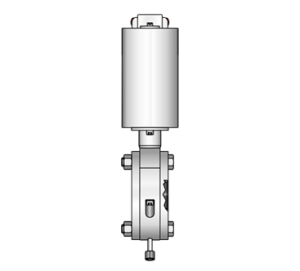

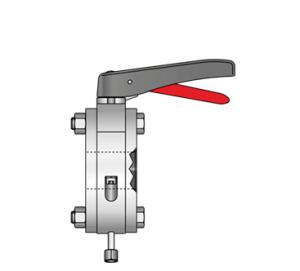

The modular system of this butterfly valve makes it possible to change over quickly and easily from manual to pneumatic drive without removing the valves from the piping system. The drives are available with sensors or control head KI-TOP.
'KIESELMANN leakage butterfly valves are
generally available in intermediate flange version

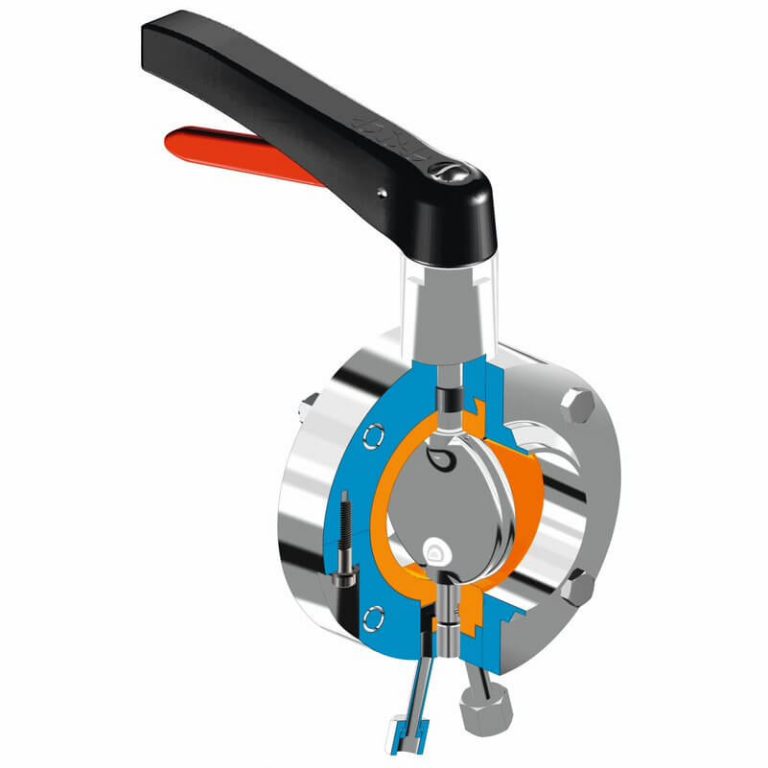

When closed, the butterfly valve with a tandem seal ensures that different media remain separated without leaking.
Any leaks at the butterfly valve seal flow without pressure through the leakage drain port at the leakage outlets.
The leakage chamber can be integrated into a CIP circuit via the rinsing connections. For demanding products, we generally recommend cleaning the leakage chamber
- Cost-effective leakage protection
- Easy to install
- Sealing materials EPDM, HNBR
- Hygienically safe due to easy cleaning of the leakage chamber, CIP appropriate
- Easy-to-maintain design with just one sealing element
- Drives selectable, three power levels
