Constant Flow
What is a “Constant Flow” Steam Injection Heater?
The Pick Constant Flow Steam Injector is used wherever a relatively constant flow of heated liquid at a precisely controlled temperature is required.
The Constant Flow Steam Injector mixes medium-to-high pressure steam with cold water and delivers instant hot water. It is ideal when the water flow is fixed or varies over a narrow span (3:1).
The Pick Heater is delivered as a complete, compact system and can be easily customized with additional controls, valves, and instrumentation to meet your plant specifications. Save space, energy and maintenance costs using a Pick Constant Flow Heating System.
For water flow turndown beyond 3:1 or rapid start-stop cycling applications, please refer to our Variable Flow design.
A mix of medium-to-high pressure steam
with cold water to deliver instant hot water
Features and Benefits
- Eliminates harmful vibration and steam hammer
- Widest operating range of any steam injection heater
- Smooth, quiet operation within acceptable dBA limits
- Precise, accurate temperature control
- Complete absorption of steam into liquid at point of contact – not dependent on high velocity mixing in downstream piping
- Low liquid pressure drop
- 100% heat transfer – cuts fuel costs as much as 30% compared with indirect heat exchangers
- 10 sizes – steam capacity ratings from 700 to 50,000 lbs/hr
- Available in 316 stainless steel, carbon steel, cast iron or special alloys on request
- Complete instrumentation available
- Over 70 years of experience in design, installation and service of steam injection heating systems
Applications
- Reactor Vessels
- CIP
- Sterilization
- Centrifuge or Filter
- Backflush
- Jacketed Kettles
- Tempered Water
- Retorts
- Extruders
- Pasteurizers
- Tank Filling
- Slurries
- Green Liquor
- Heating
- Felt Washing
- Boiler Feed Water
- Condensate Mixing

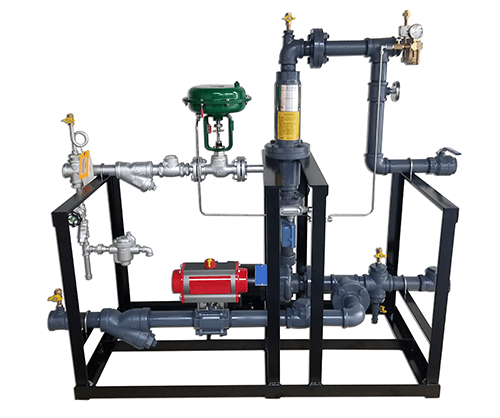

Easily Customised

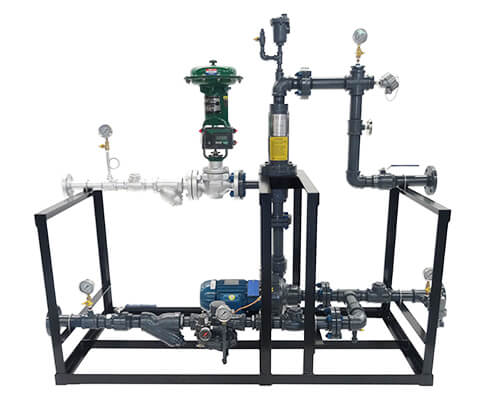

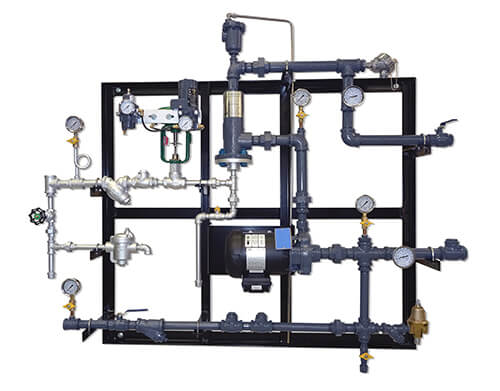

Compact System

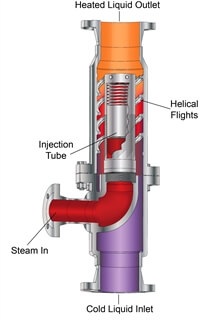

Steam In, Liquid Out
